n A-Type Screwed Diaphragm Valve uses a flexible diaphragm to control the flow of media through the valve. Turning the handwheel raises or lowers the diaphragm, allowing the valve to open, regulate flow or provide positive shut-off.

The diaphragm forms a barrier between the process media and the valve’s operating components. This helps protect the working mechanism from the media and reduces potential leakage paths.

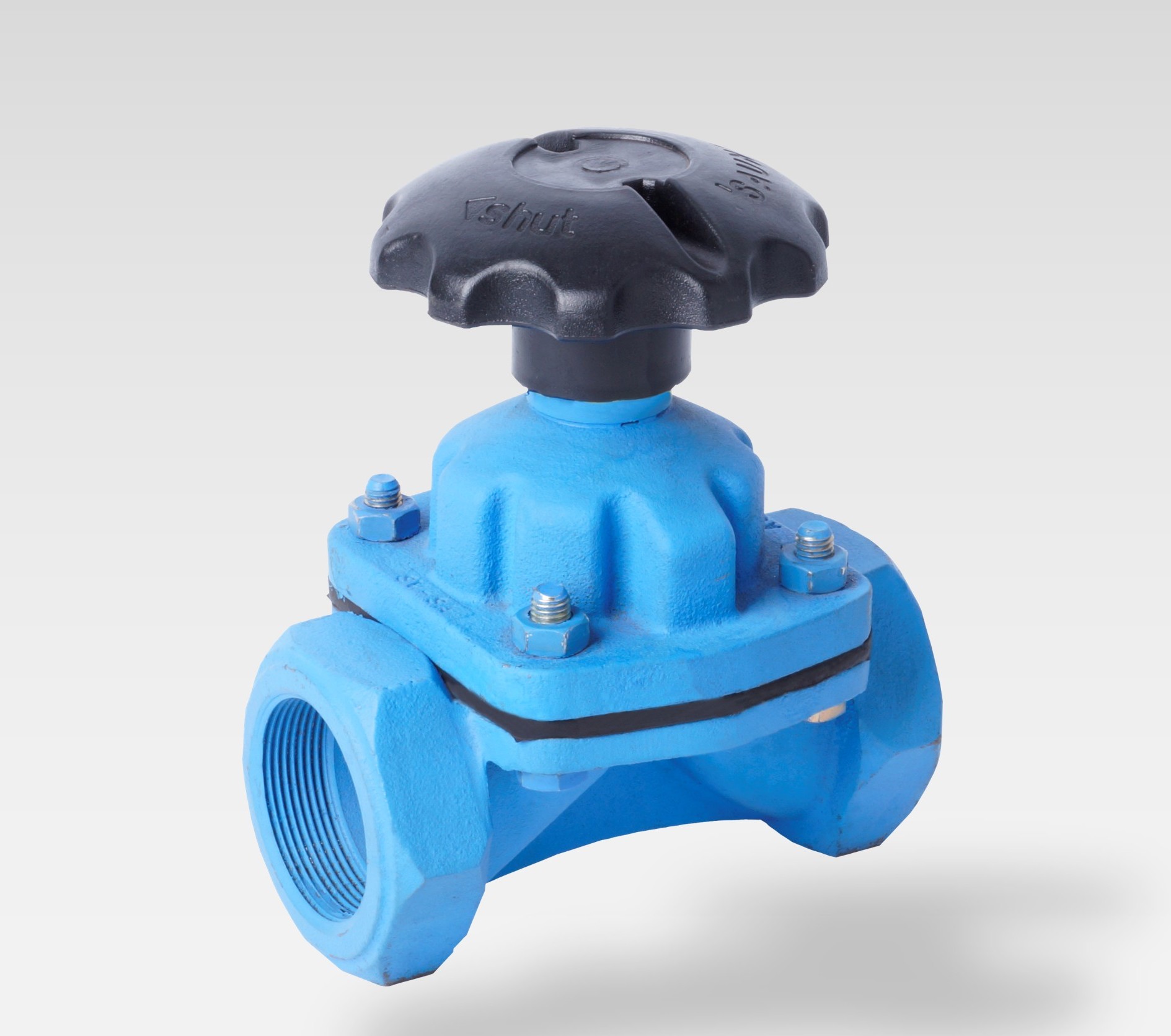

The pictured model features manual handwheel operation and female screwed/threaded end connections, providing a compact alternative to larger flanged diaphragm valves and making it particularly useful in smaller-bore piping installations.

Key Features

• Flexible diaphragm sealing design
• Reliable isolation and shut-off
• Process media separated from operating components
• Compact A-Type configuration
• Female screwed/threaded end connections
• Manual handwheel operation
• Simple, robust construction
• Reduced potential leakage paths
• Suitable for a range of industrial media with appropriate material selection
• Straightforward maintenance

Typical Applications

• Water treatment and distribution
• Mining and mineral processing
• Industrial process systems
• Chemical processing
• Plant utilities
• Manufacturing
• General industrial piping
• Corrosive or abrasive media where suitable diaphragm and body materials are specified
